- SWISS ENGINEERED Electric In-Floor Heating System with 100% quality control; COMMERCIAL GRADE Manufactured with 30 YEARS of successful experience in electric heating cables, sold in 60 countries worldwide; ETL CERTIFIED

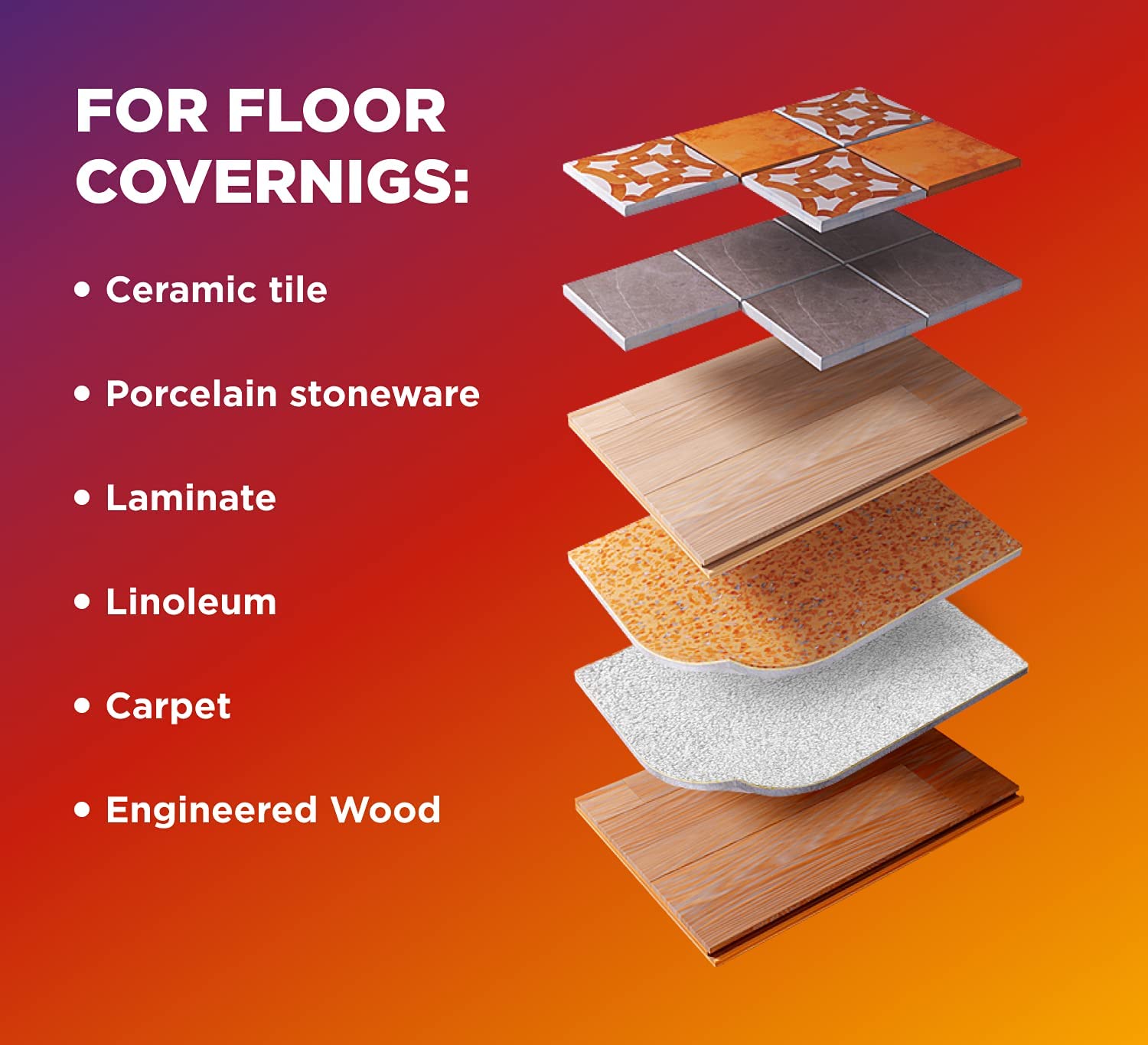

- CUSTOMIZE the layout to fit any area: Bathroom, kitchen, mud room, living room, etc.; Treat yourself to the LUXURY of heated floors; INSTALL UNDER ceramic tile, natural stone, laminate, linoleum, carpet, and more
- REDUCE ENERGY COSTS, more efficient than central forced-air heating; NO MAINTENANCE, one-time installation that operates completely silent; 12 WATTS/SQFT, 6.5 ft cold lead; Combine multiple systems to fit your area; Technical details and electrical system requirements in description below

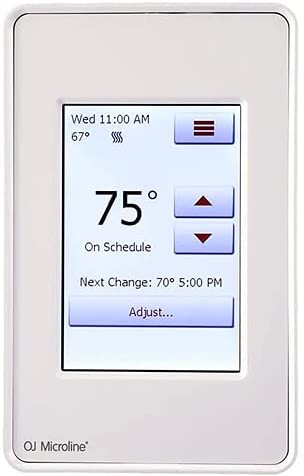

- HOW TO USE: After you've determined the size needed, clean and prime the subfloor; layout the system in the configuration you planned; connect the system to the thermostat, and the thermostat to the power source to check all connections; disconnect the power source, and then cover the system with the appropriate adhesive for your decorative flooring (cement, tile adhesive, etc.); then lay the decorative flooring; THERMOSTAT SOLD SEPARATELY

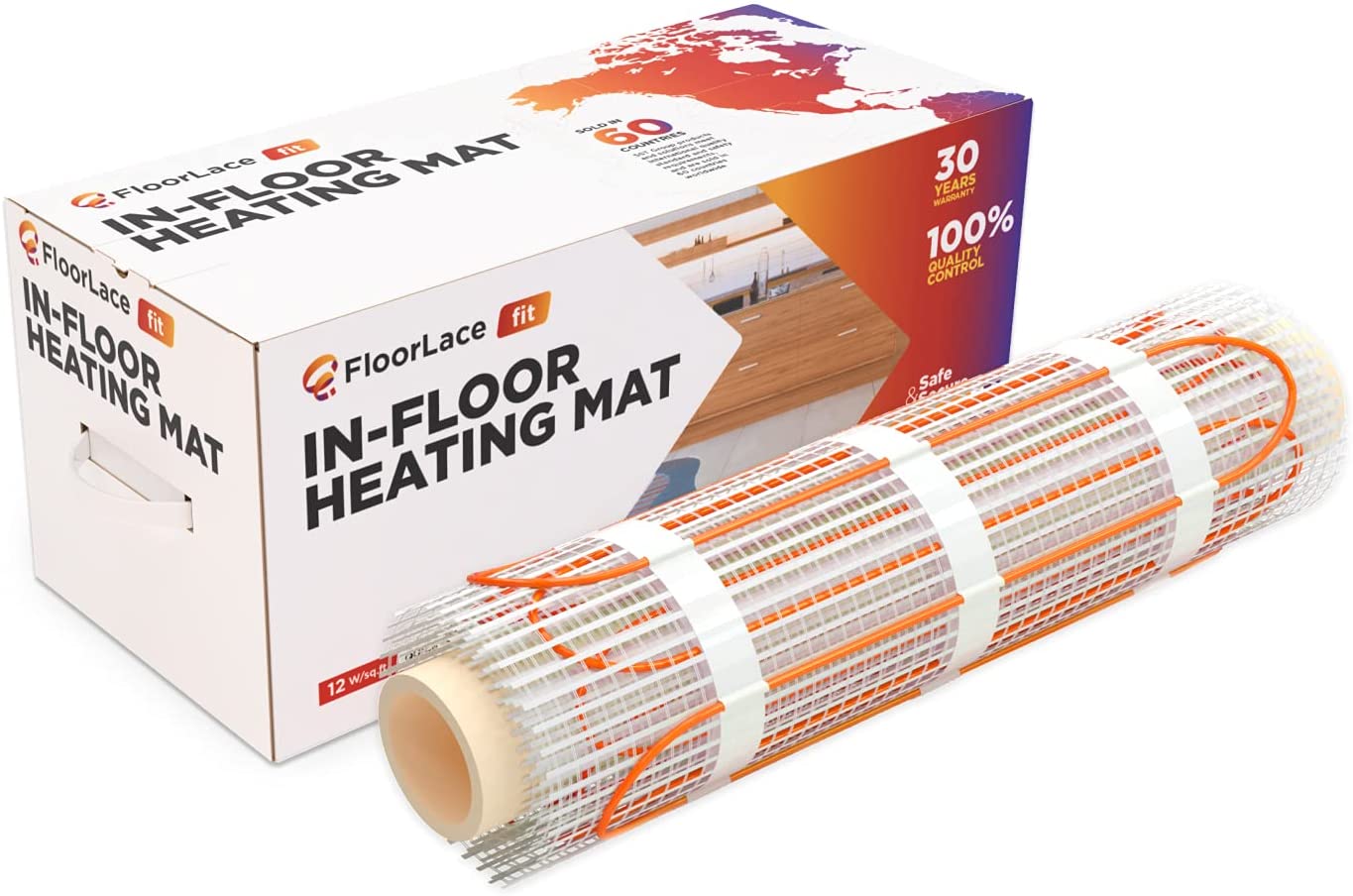

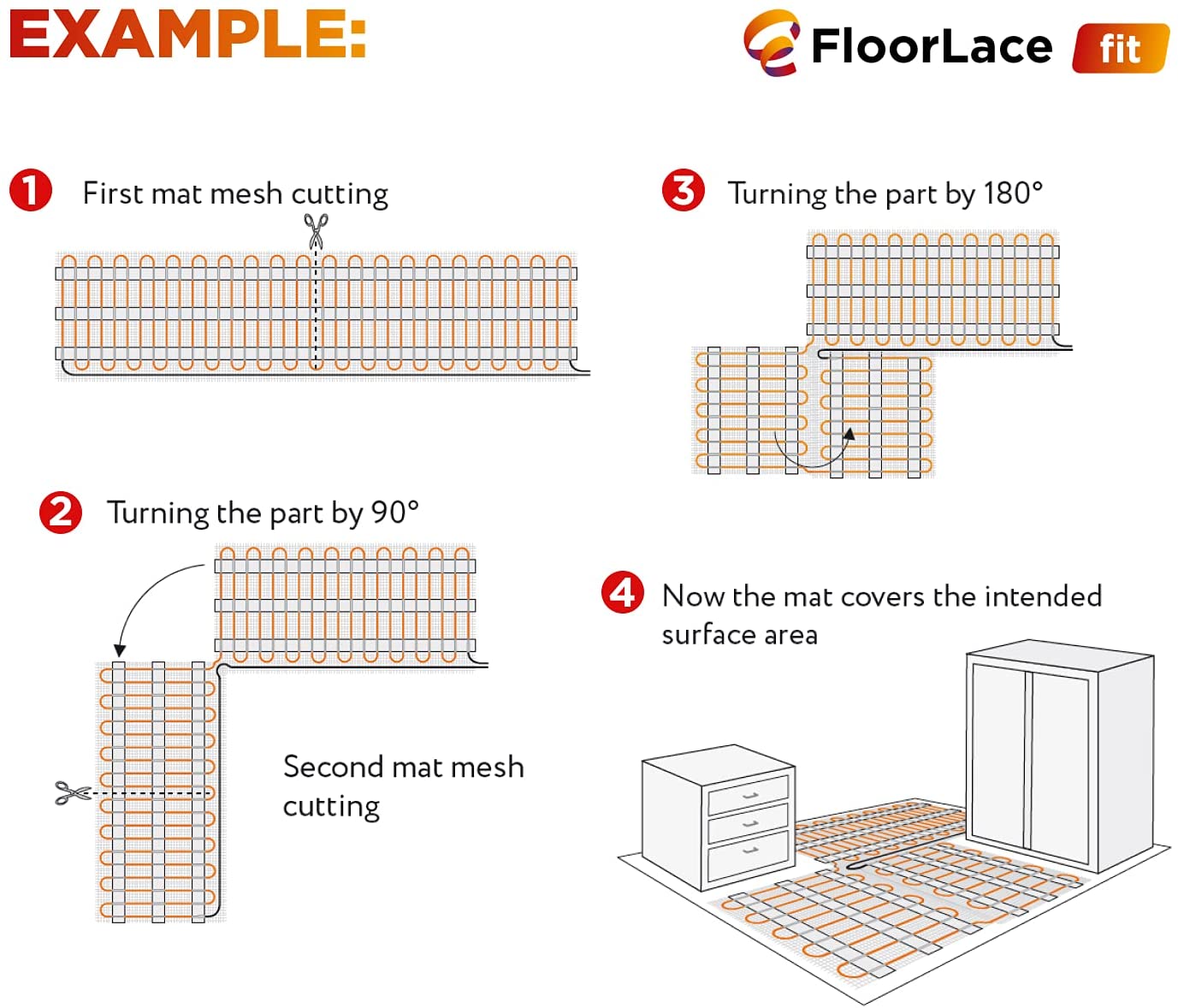

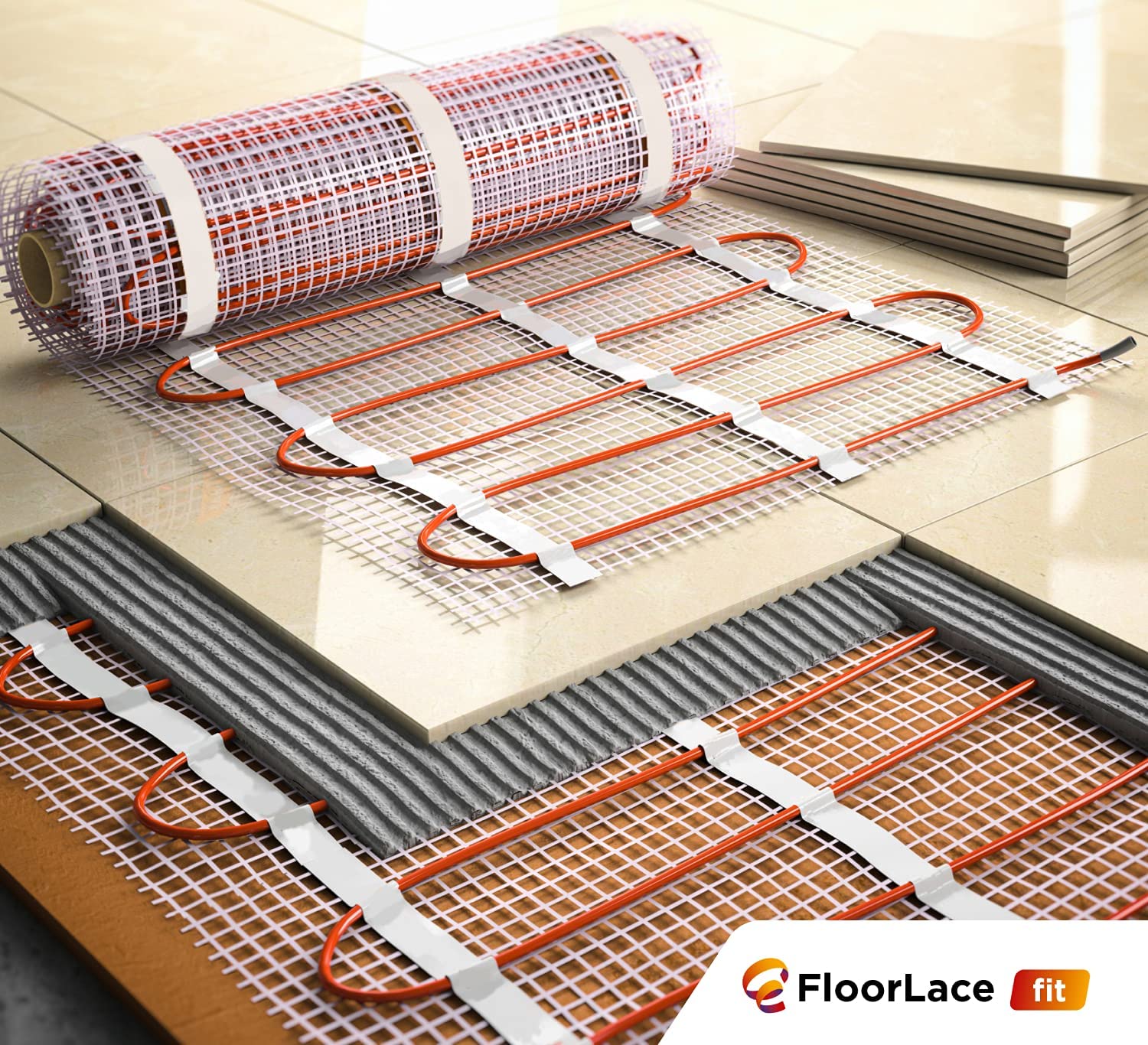

- FloorLace FIT is a heating cable attached to a fiberglass mesh (the mat); Entire mesh has adhesive backing, so it adheres to the floor and stays put during installation; EASY INSTALLATION for square or rectangle areas; Mats are 20-inches wide (and length varies by size selected – see product description); The mesh of the mat can be cut to better fit desired area, the cable cannot be cut or altered in any way; Kit includes: heating mat, and installation manual. 30 YEAR WARRANTY
WHAT IS IT

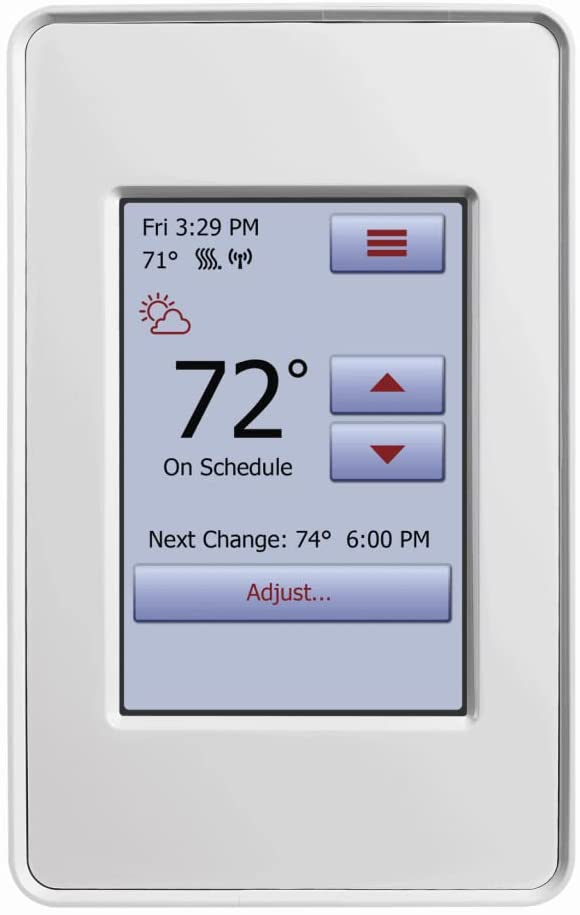

A heated flooring system, also known as "radiant heat" or "radiant floor heating system", consisting of an electrically powered heating cable. The cable(s) is installed on the subfloor surface, and then covered and set with your choice of decorative flooring. The heating cable(s) is controlled via wall thermostat. These are no maintenance, one time installation cables. The FloorLace system comes with a 30-year warranty. Enjoy a heated tile floor or stone, linoleum, carpet, and more. This system is not for use with real wood as either the subfloor or decorative flooring. Indoor use only. Not for installation under pool or spa (hot tub) nor outdoor use. Thermostat sold separately.
ELECTRICAL INFORMATION

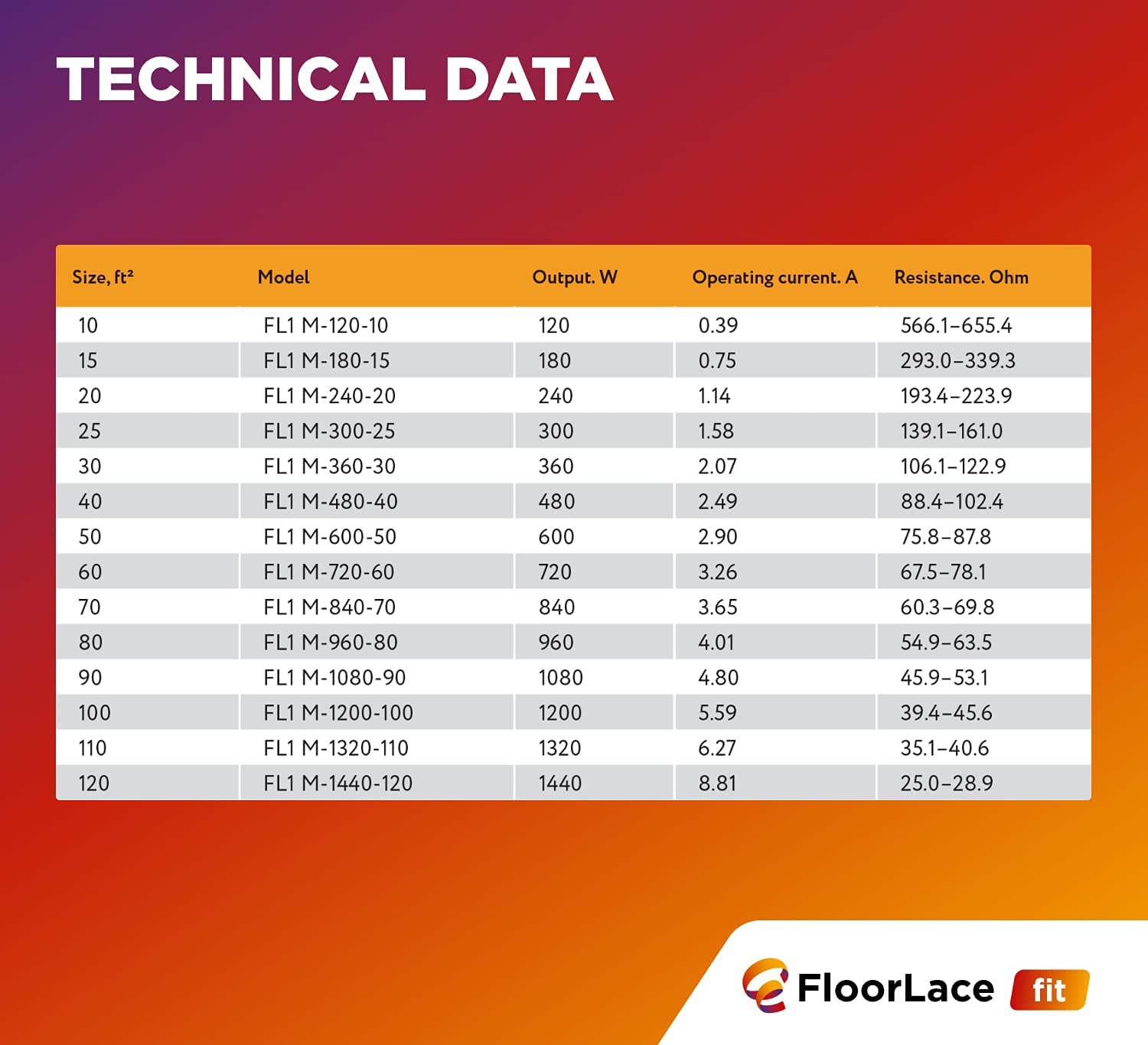

The system must be connected via GFCI with a rated operating current not more than 30mA. The surface heat output of the cable is 12w/Sqft. This output ensures uniform and efficient heating.
USE & INSTALLATION

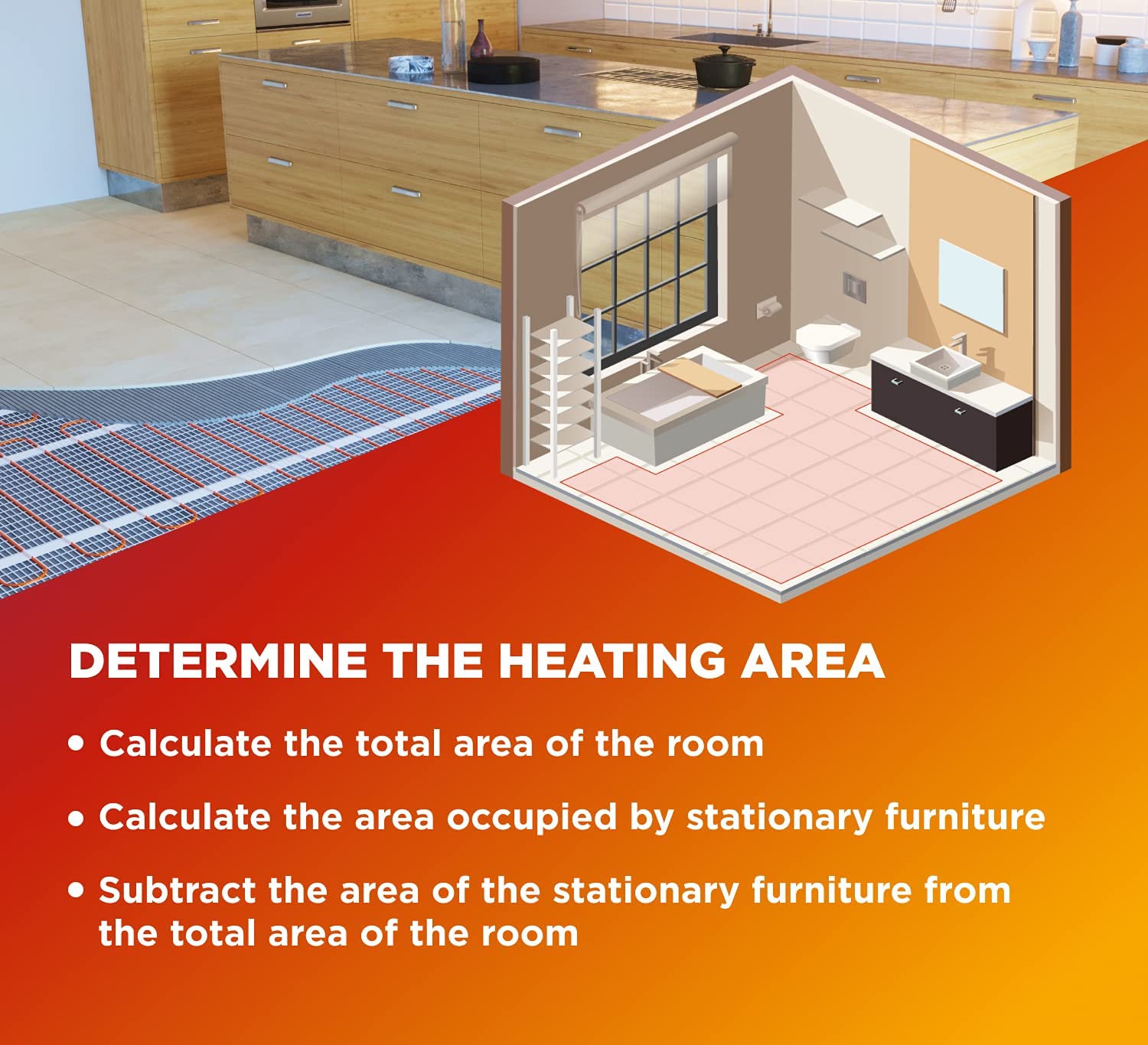

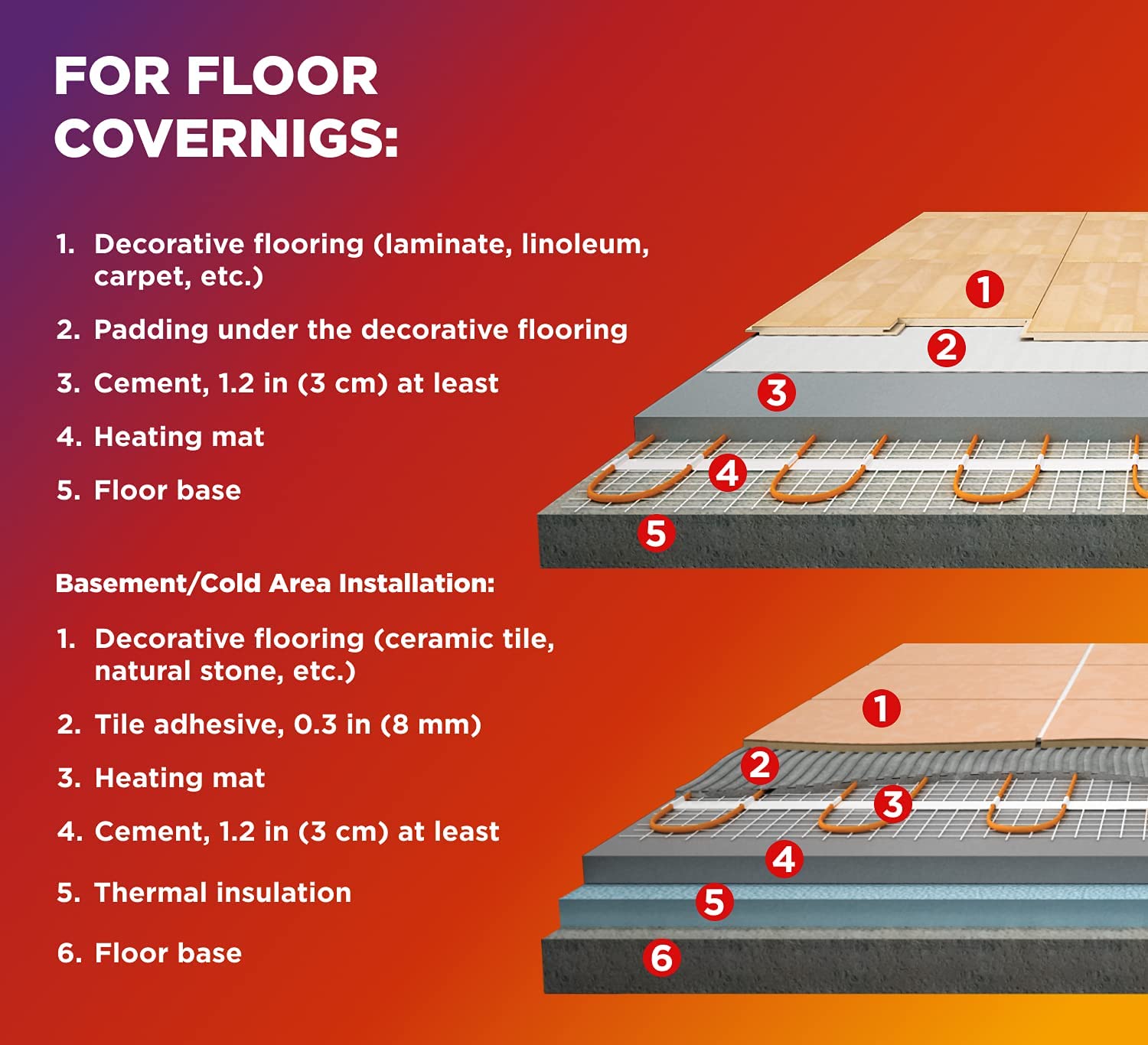

Plan the layout of the system in your area before installation. Once the system is laid out, be sure to test all electrical connections. Disconnect the power before covering with appropriate adhesive (cement, etc.). Cable and all components must be fully covered in mortar, cement, asphalt, concrete, tile adhesive, thinset, etc., whatever's required for your floor covering installation. The flooring adhesive must be completely set and dry (based on its instructions) before first powering on the system.
(Screamer [electrical fault indicator] sold separately, though not required if you have a multimeter)
